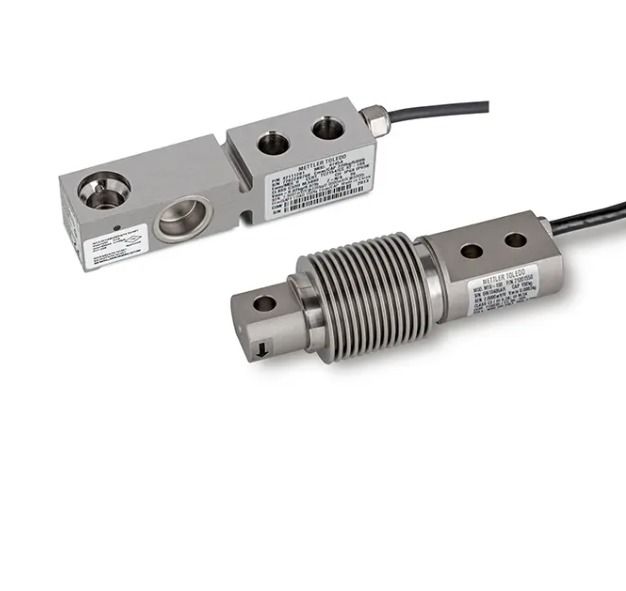

Name: Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: বহুমুখী মরীচি লোড সেল
Availability: InStock

বাড়ি পণ্য

Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications

পণ্যের বিবরণ:

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	Mettler Toledo
মডেল নম্বার:	বহুমুখী মরীচি লোড সেল

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	১টি সেট
মূল্য:	আলোচনা সাপেক্ষে
প্যাকেজিং বিবরণ:	ক্যারন বক্স
ডেলিভারি সময়:	10-30 দিন
যোগানের ক্ষমতা:	প্রতি মাসে 2000 সেট

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

পণ্য:	মেটলার টলেডো লোড সেল	সংযোগ:	সমন্বিত
সর্বোচ্চ ক্ষমতা:	22 পাউন্ড (10 কেজি)	মেট্রোলজি:	এনটিইপি তৃতীয় 5,000 ডি ， ওআইএমএল সি 3
সুরক্ষা রেটিং:	আইপি ৬৭	উপাদান:	অ্যালুমিনিয়াম, প্যাসিভেটেড
প্ল্যাটফর্মের আকার (এলএক্সডাব্লু):	400 মিমি x 400 মিমি
বিশেষভাবে তুলে ধরা:	shear beam load cell for industrial weighing , bending beam sensor with warranty , Mettler Toledo load cell sensors

Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications

Attribute	Value
Product	Mettler Toledo Load Cell
Connectivity	Integrated
Maximum Capacity	22 lb (10 kg)
Metrology	NTEP III 5,000d, OIML C3
Protection Rating	IP67
Material	Aluminum, passivated
Platform Size (LxW)	400 mm x 400 mm

Convert Any Structure into a Weighing Scale

Multipurpose beam load cells can be selected to suit your accuracy requirements with global approvals such as OIML, NTEP, ATEX, and FM provided as standard; thus the load cells can be used globally in legal-for-trade and Ex weighing systems. The durable, IP68/IP69k-rated designs and full set of approvals enable versatility and safety in a broad range of applications. Available capacities range from 5 kilograms to 4.4 tons, allowing you to weigh anything from small vessels to large tanks.

Ingress Protection to Withstand Washdown

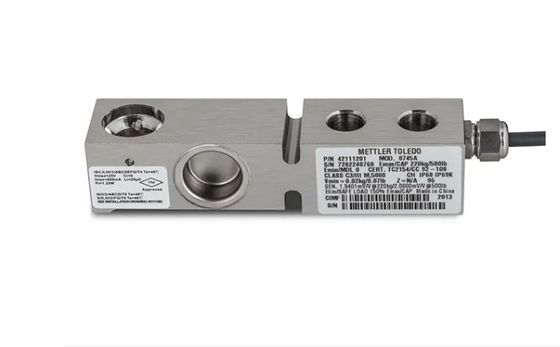

Due to the hermetically sealed (welded) design, the MTB and 0745A multipurpose load cells are ideal for harsh environments in process, food, and pharma applications. The IP68/IP69K protection class is suited to withstand washdown applications.

Accessories

A wide range of accessories are available for load cells including base plates and load introductions for coping with shock and vibration.

The Foot Kit (FKT) can be used for convenience in floor scale applications with MTB, 0745A, and SLB515 load cells:

Rocker-pin load introduction for high accuracy
Copes with deck deflection
Height adjustable
Replaceable rubber pad
Slight shock / vibration damping function

The Expansion and Vibration Kit (EVK) can be used for top mounting applications with 0745A and SLB515 load cells. It is a cost-effective solution but without any restraint/safety features. It has a low profile for direct integration into your weighing system.

Specifications

Material: Aluminum, passivated

Maximum Capacity: 22 lb (10 kg)

Metrology: NTEP III 5,000d, OIML C3

Protection Rating: IP67

Connectivity: Integrated

Platform Size (LxW): 400 mm x 400 mm
